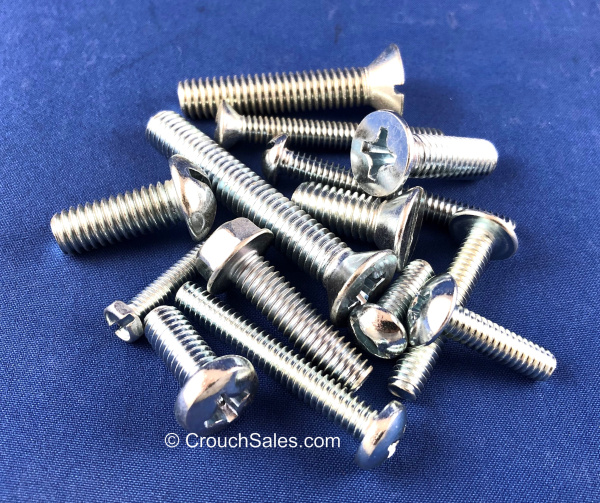

Machine Screws - Zinc Plated
Machine Screws are sometimes referred to as "Stove Bolts" and have machine threads. They are commonly used with a Nut or in a pre-tapped hole with matching threads. They have a straight shank and are threaded along the entire length of the shaft (to the head) and designed to bind metal to metal but sometimes used in other applications.  Machine Screws are fully threaded zinc plated screws commonly used with a machine nut and are available in a variety of diameters from 2/56" thru 3/8-16 and lengths from 1/8" thru 6" in several head styles such flat head, hex head, pan head, oval head, round head, and truss head.
Machine Screws are available in phillips drive, slotted drive, and hex drive.
Select the drive and head style of the zinc plated machine screws you are searching for below.
Phillips Flat Head Machine Screws Zinc Plated are fully threaded countersunk machine screws to the bottom of the flat head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Slotted Flat Head Machine Screws Zinc Plated are fully threaded countersunk machine screws to the bottom of the flat head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Slotted Hex Washer Head Machine Screws Zinc Plated are fully threaded hex head machine screws with a washer beneath the head commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 3/16" thru 5" lengths.
|
Unslotted Hex Washer Head Machine Screws Zinc Plated are fully threaded hex head machine screws with no washer beneath the head commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 3/16" thru 5" lengths.
|
Phillips Oval Head Machine Screws Zinc Plated are fully threaded countersunk machine screws to the bottom of the oval head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Phillips Pan Head Machine Screws Zinc Plated are fully threaded machine screws to the bottom of the pan head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Slotted Pan Head Machine Screws Zinc Plated are fully threaded machine screws to the bottom of the pan head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Slotted Round Head Machine Screws Zinc Plated are fully threaded machine screws to the bottom of the round head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Phillips Truss Head Machine Screws Zinc Plated are fully threaded machine screws to the bottom of the truss head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
|
Slotted Truss Head Machine Screws Zinc Plated are fully threaded machine screws to the bottom of the truss head and commonly used with a machine nut and available in 2/56 thru 3/8-16 diameters and 1/8" thru 6" lengths.
| | |
|
|
